This is my business card.
Idea
I want a business card to express myself. I want it to have some games that the user can play. The idea is to have a led matrix where you can play snake or tetris or other simple games. It could be possible to add 2 player games.
Hardware
The project can be found here ProProject_businesscard_2024-08-30.epro.
Technical
I decided to have 4 buttons and to have a 8 by 8 led matrix. It is nicer and more proper to

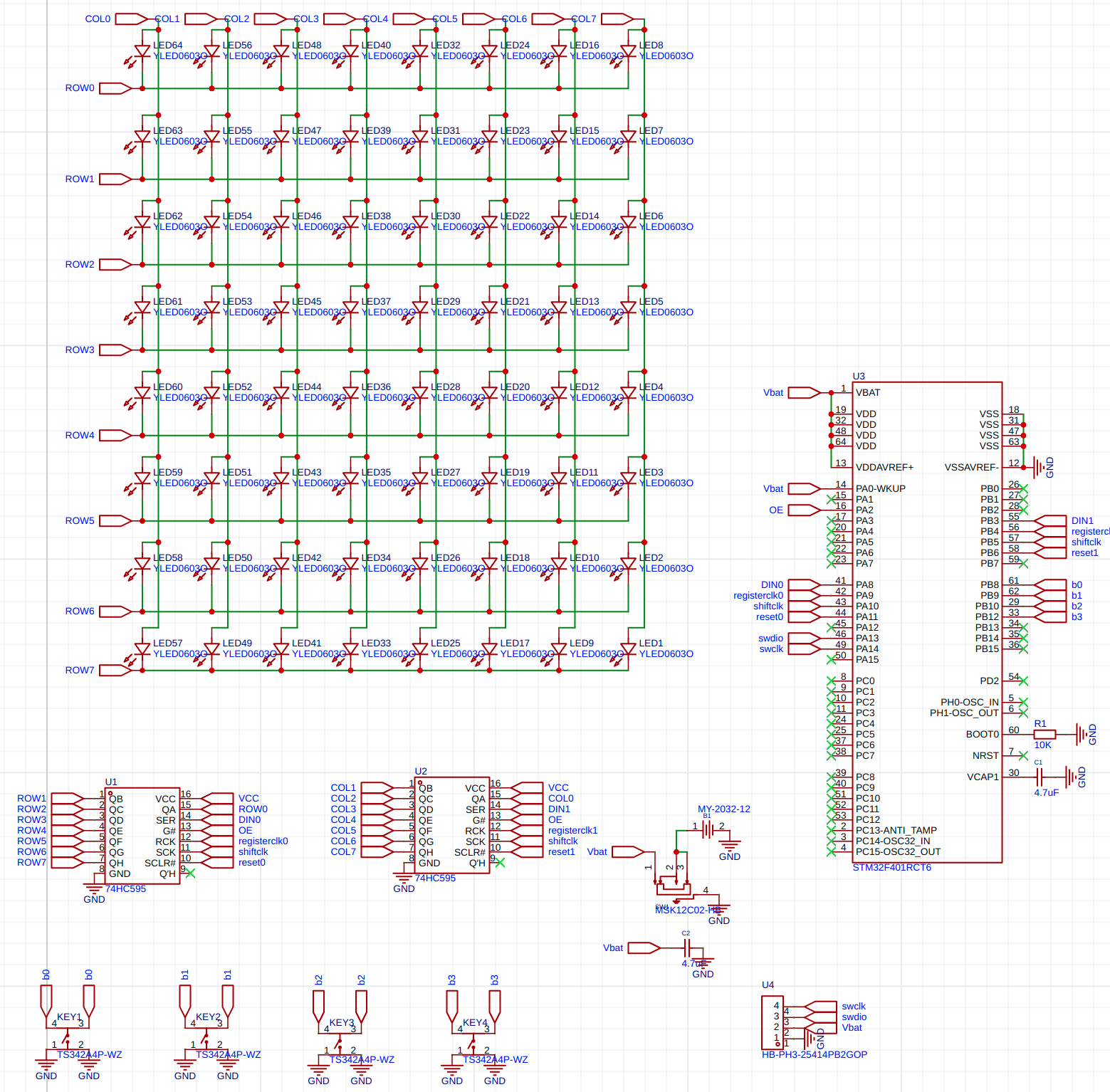

use 8 bit shift registers instead of the gpio pins directly. Here I use two of the cheap 74HC595 registers. For the processors I opted for a stm32f401.
Price
Battery is not included.
| Name | Quantity | Price [€] |
|---|---|---|
| Stm32f401RCT6 | 10 | 12.5 |
| 74HC595D | 100 | 3.99 |
| leds 0603 | 1000 | 4.89 |
| Capacitor+Resistor | ~0 | |
| Button (TS342A4P-WZ) | 100 | 1.75 |
| PCB+shipping | 5 | 10.4 |
| CR2032 Battery Holder SMD | 10 | 2.89 |
Next Time I order 5 PCBs to make the cards the cards will be less than that. The button, LEDs, and shift registers will be available here already.
| Name | Quantity | Price [€] |
|---|---|---|
| PCB+shipping | 5 | 10.4 |
| It’ll only be |
Design
I want the two games to be intertwined and represented on the board. I used replica to generate the image that is visible in the center between the controls.
Prompt: Tetris logo snake in front
.png)
On the left side I show the basic Tetris blocks.
On the right side I want to show the Snake in the game snake but realistic. I also want it to go around the controls a bit.
Let’s draw up a sketch 🐍. We can use something like Excalidraw.
perfect snake.
Now I used OpenArt.ai to generate the image.

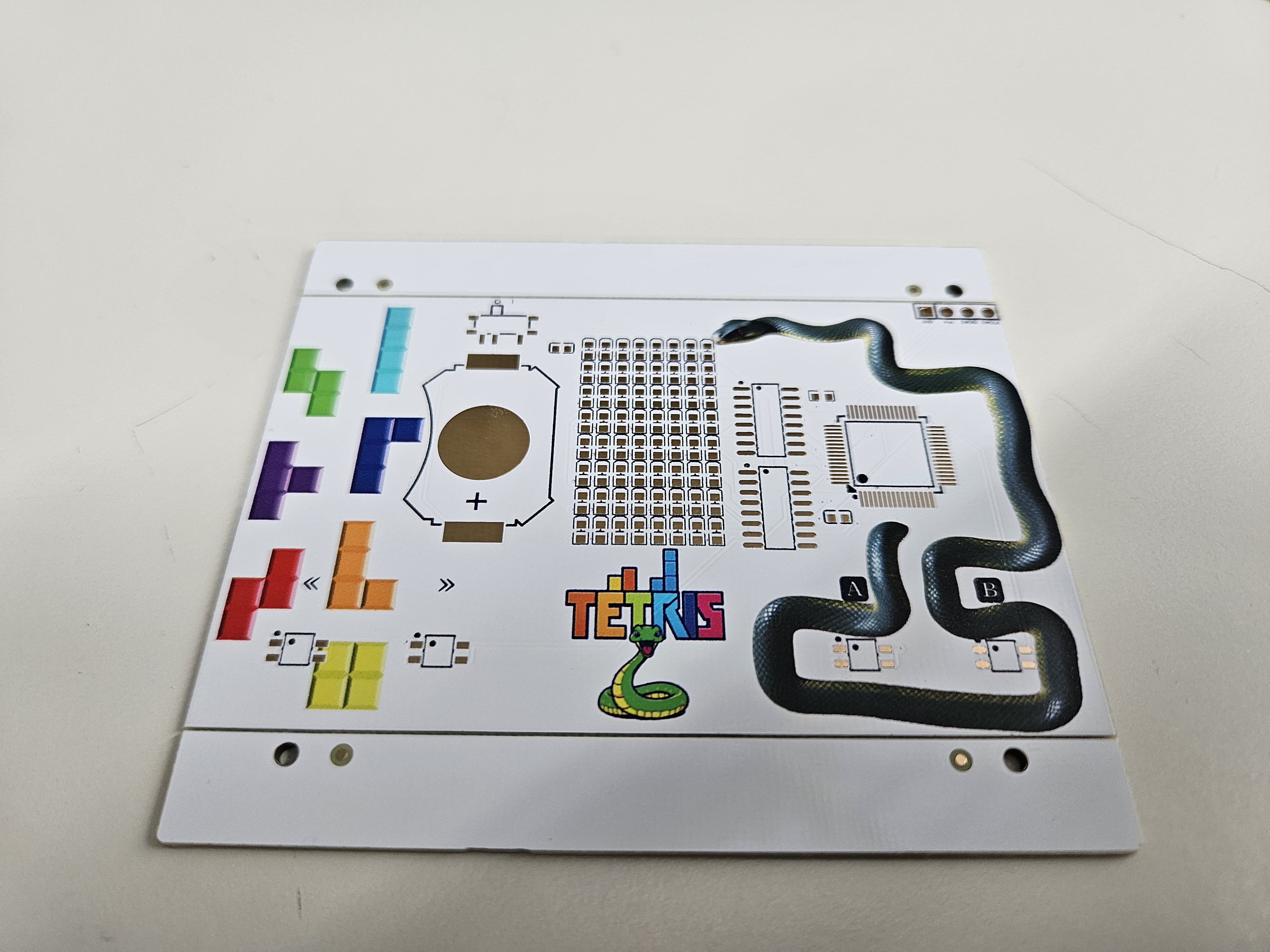

Final design:
